HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan

  • HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan
  • HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan
  • HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan
  • HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan
  • HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan
  • HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan
  • HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan
  • HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan
  • HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan
Luogo di origine Cina
Marca HCW
Certificazione CE/ISO 9001
Numero di modello CW801
Quantità di ordine minimo 2 pezzi
Prezzo Negoziabile
Imballaggi particolari cassa di legno
Tempi di consegna 5-8 GIORNI LAVORATIVI
Termini di pagamento T/T
Capacità di alimentazione 100 pezzi al giorno

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Brand name HCW Modello del prodotto CW801
Materiale del prodotto Acciaio inossidabile 304 Dimensioni del prodotto 1500*1500*2300mm
Garanzia 1 anno Certificato ISO 9001/CE
Alimentazione di lavoro AC220V±10%,50HZ±10% HZ Motore 120 ° movimento a piena altezza
UMIDITÀ RELATIVA ≤ 90% non condensante Materiale dell'anta della porta Tubo in acciaio inossidabile
Larghezza del canale 600 mm Velocità operativa 20 persone/minuto
Evidenziare

120° Full Height Movement Turnstile

,

ISO 9001/CE Certified Turnstile

,

5 Million-Cycle Lifespan Turnstile
Lasciate un messaggio
Descrizione di prodotto

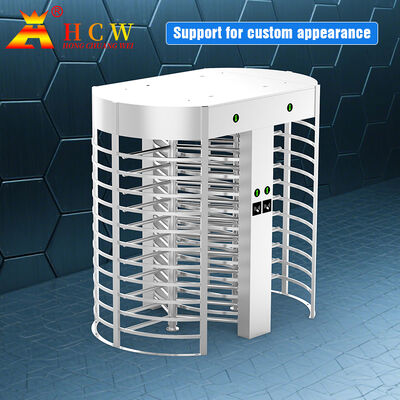

HCW Full Height Turnstile Access Control System
The HCW CW801 is a premium SUS304 revolving door turnstile engineered for high-security environments requiring full-height barrier protection. Constructed entirely from durable 304 stainless steel with a substantial 1500×1500×2300mm profile, this robust AC220V barrier turnstile gate delivers exceptional physical security with its 120° full-height movement mechanism.
Key Features
  • Operates at 20 people/minute throughput
  • 600mm channel width for controlled single-person passage
  • 5 million-cycle lifespan for long-term reliability
  • Performs in environments with up to 90% humidity
  • ISO 9001 and CE certified for quality assurance
  • Customizable as an OEM automatic turnstile gate
Technical Specifications
Brand Name HCW
Product Model CW801

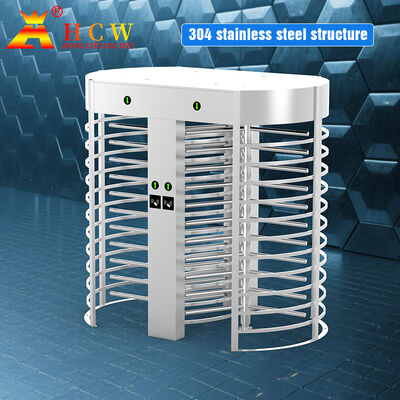

Material 304 Stainless Steel

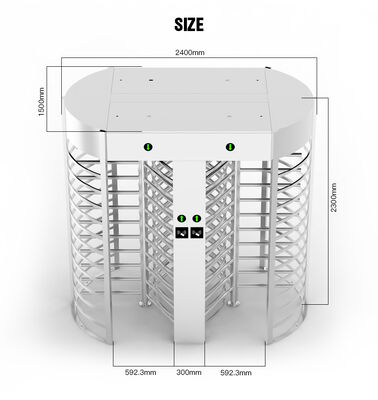

Dimensions 1500×1500×2300mm
Power Supply AC220V±10%, 50HZ±10%
Motor Movement 120° full height rotation
Channel Width 600mm
Operating Speed 20 people/minute
Service Life 5 million cycles
Warranty 1 Year
Certifications ISO 9001, CE
Product Advantages
  • Competitive Manufacturing Value - Offers premium security features with excellent cost efficiency for large-scale deployments
  • Superior Structural Integrity - 304 stainless steel construction provides enhanced anti-climb protection and vandal resistance

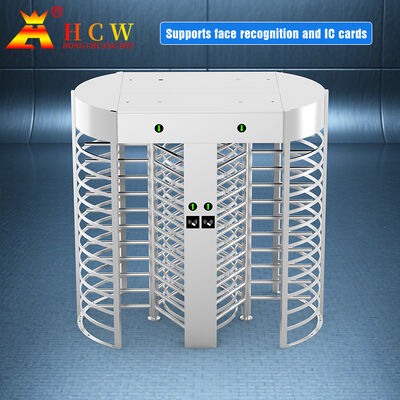

  • Advanced Technology Integration - Compatible with facial recognition and other biometric systems
  • Streamlined Installation - Precision engineering reduces on-site assembly time and labor costs
  • Optimized Security Movement - 120° rotation creates an imposing physical barrier while ensuring smooth passage control
Recommended Applications
  • Maximum Security Facilities - Prisons and detention centers requiring physical barrier against climbing and unauthorized access
  • Industrial Plants & Restricted Zones - Factories and hazardous areas needing perimeter protection and access control
  • Critical Infrastructure Protection - Power plants and data centers requiring reliable performance in high-humidity environments
HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan 0

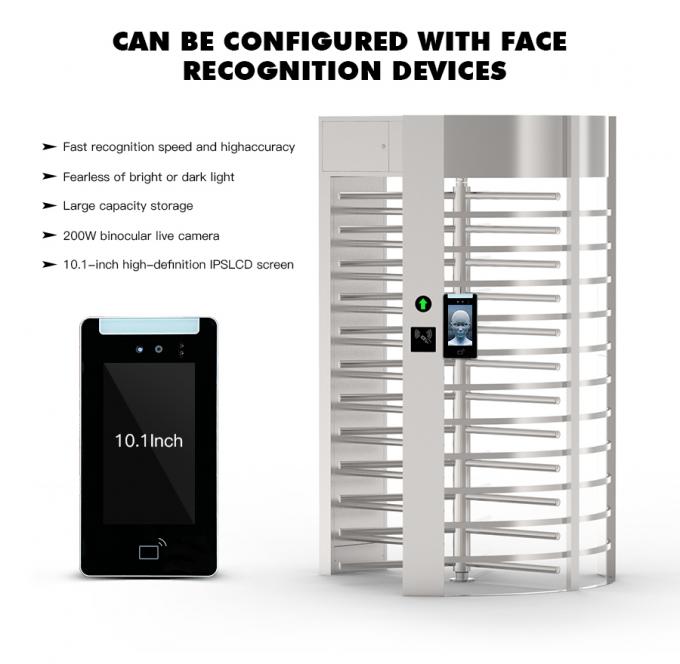

HCW CW801 Turnstile side view displaying 120° rotation mechanism
HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan 2
HCW Full Height Turnstile with 120° Full Height Movement ISO 9001/CE Certified and 5 Million-Cycle Lifespan 3
