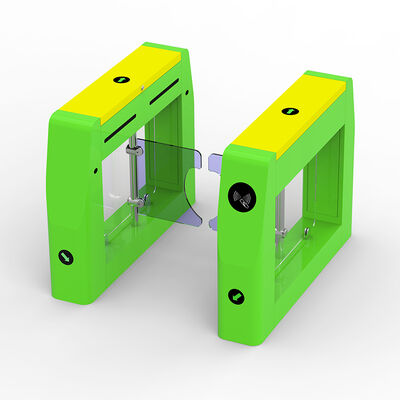

HCW Automatic Turnstile Gate with High Throughput 30~40 people/minute Swing Gate,3 Million Trouble-Free Runs Pedestrian Gate

Luogo di origine Shenzen, Cina
Marca Hongchuangwei
Certificazione CE
Numero di modello CW436
Quantità di ordine minimo 2
Prezzo Negoziabile
Imballaggi particolari casse di legno
Tempi di consegna 7-15 giorni lavorativi
Termini di pagamento T/T
Capacità di alimentazione 100 pezzi al giorno

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Alimentazione elettrica AC220V ± 10%, 50Hz Materiale del telaio Acciaio inossidabile 304
Larghezza del passaggio 600 ~ 750mm (personalizzare) Motore CC senza spazzole
Personalizzazione del colore Supporto OEM/ODM Supporto
Evidenziare

automatic turnstile gate with high throughput

,

swing gate pedestrian access control

,

trouble-free automatic turnstile gate

Lasciate un messaggio
Descrizione di prodotto
HCW Automatic Turnstile Gate with High Throughput 30~40 people/minute Swing Gate
Product Overview

HCW CW436 Child Safety Swing Gate - specifically designed for educational environments. Constructed with premium 304 stainless steel, this solution provides robust pedestrian management for high-traffic school areas requiring strict safety protocols, while enhancing campus security with hygienic, durable access control.

Core Technical Features
Stainless Steel Safety Materials
  • Full-body 304 stainless steel: Excellent corrosion, rust, and oxidation resistance, maintaining appearance in various weather conditions
  • Customizable colors: Environmentally friendly paint options available to match campus aesthetics without health risks
Comprehensive Safety Protection
  • Low-power anti-pinch design: Automatically stops or rebounds when encountering obstacles, complying with national safety standards
  • Multi-sensor protection: Infrared detectors with optional voice alarm integration prevent tailgating and unauthorized access
  • Emergency free passage: Automatic unlocking during emergencies ensures unobstructed evacuation routes
Superior Structural Design
  • Enhanced load-bearing capacity: Reinforced impact resistance withstands active student environments
  • Ultra-long service life: DC brushless motor supports over 1 million operations, ensuring peak reliability
Intelligent Management
  • Flexible identification: Supports campus cards, facial recognition, and fingerprint scanning with real-time attendance data recording
  • Worry-free support: Standardized campus system interfaces with 24-hour response and long-term warranty
Application Scenarios
  • School main entrances/exits (elementary schools, middle schools, kindergartens)
  • Dormitories, libraries, cafeterias requiring access control
  • Temporary gymnasium and auditorium checkpoints
Technical Specifications
Product Number CW436
Voltage AC 220V ±10%, 50Hz ±10%
Operating Temperature -25℃ to 70℃
Humidity Range 5% to 80%
Rated Power 60W
Throughput 30-40 people/minute
Infrared Beams 6 pairs
Durability 5 million operations (average lifespan)
Channel Width 600-750mm
Swing Arm Material 10mm acrylic
Dimensions 1200×220×900mm (single unit)
Frame Material 304 stainless steel, baked paint
